RS-PVDF Coated Thermal Composite Panel

RS-PVDF Composite Panel

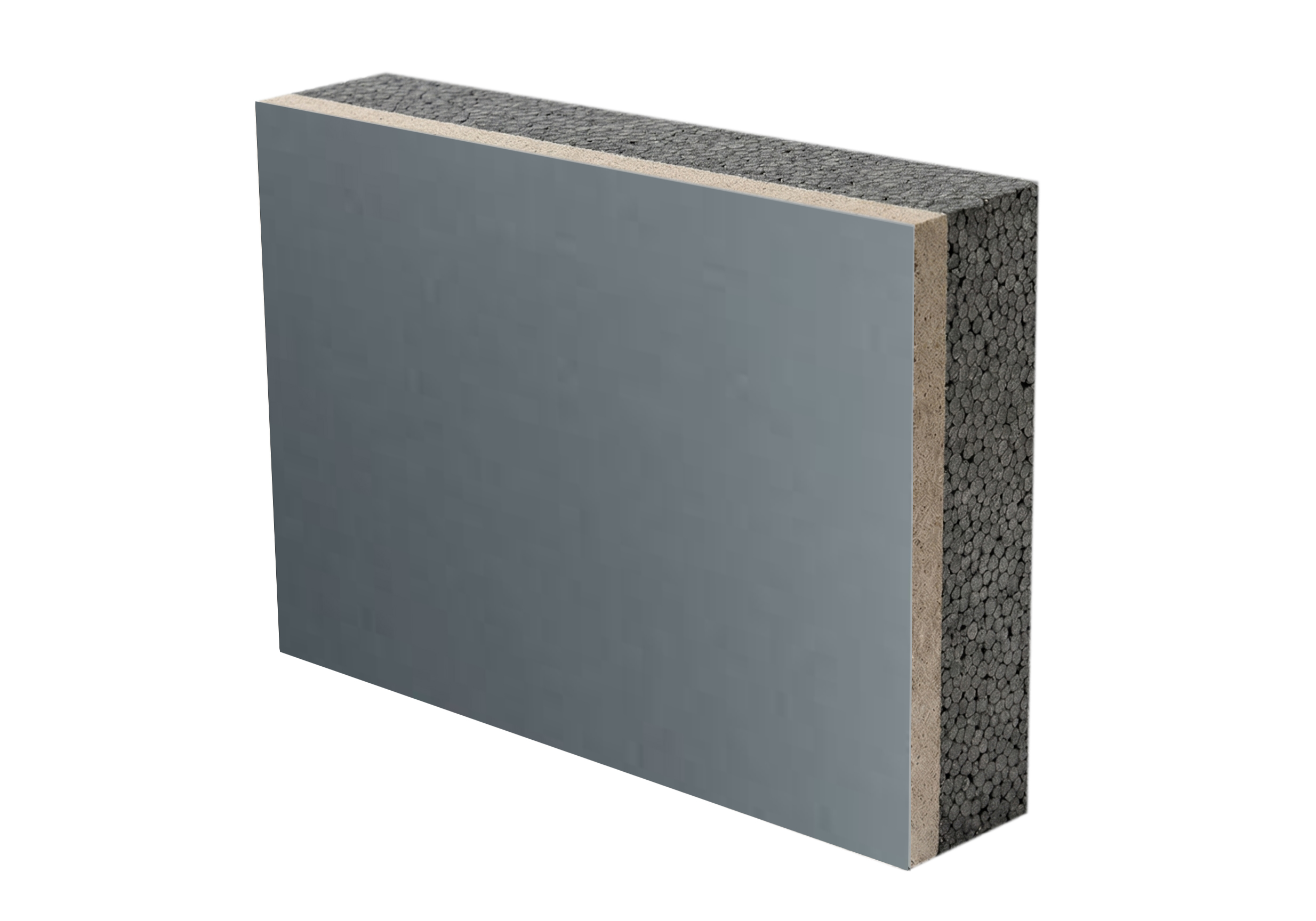

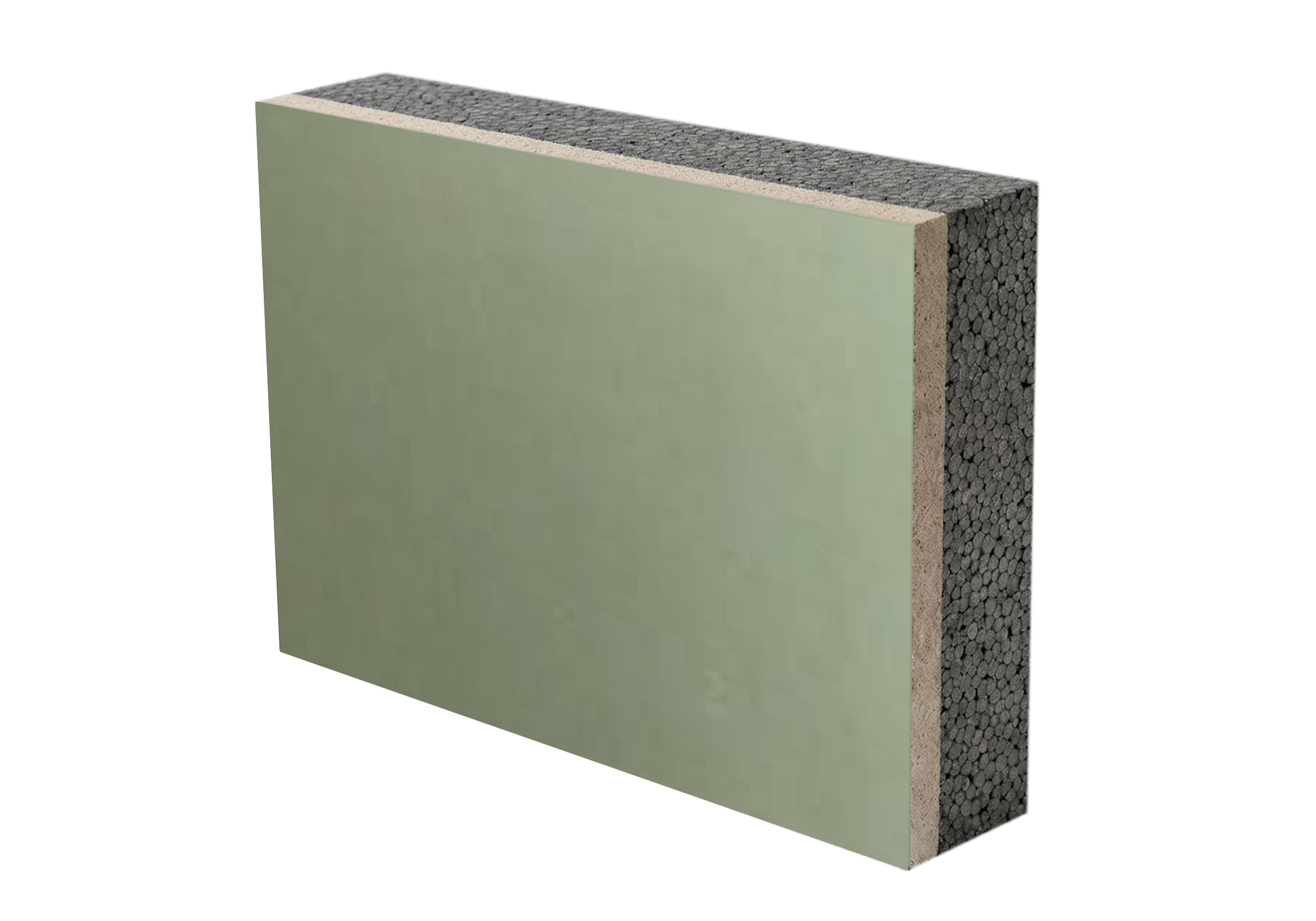

RS-PVDF Composite Panel: is a premium prefabricated building material that combines high-efficiency thermal insulation, architectural decoration, and long-term protection. The product is composed of a high-weather-resistance PVDF coating finish, a reinforced layer (metal or inorganic resin), and a high-performance insulation core (such as XPS,EPS,SEPS,or Rockwool).

Versatile Core Material Options

We offer four distinct core material options to match your project budget, fire rating requirements, and local climate.

EPS - Expanded Polystyrene

Highly cost-effective, lightweight, and stable. The economical choice for standard building insulation.

SEPS - Graphite Polystyrene

Lower thermal conductivity than standard EPS; enhances thermal performance by approximately 20%, achieving the same energy savings with a thinner profile.

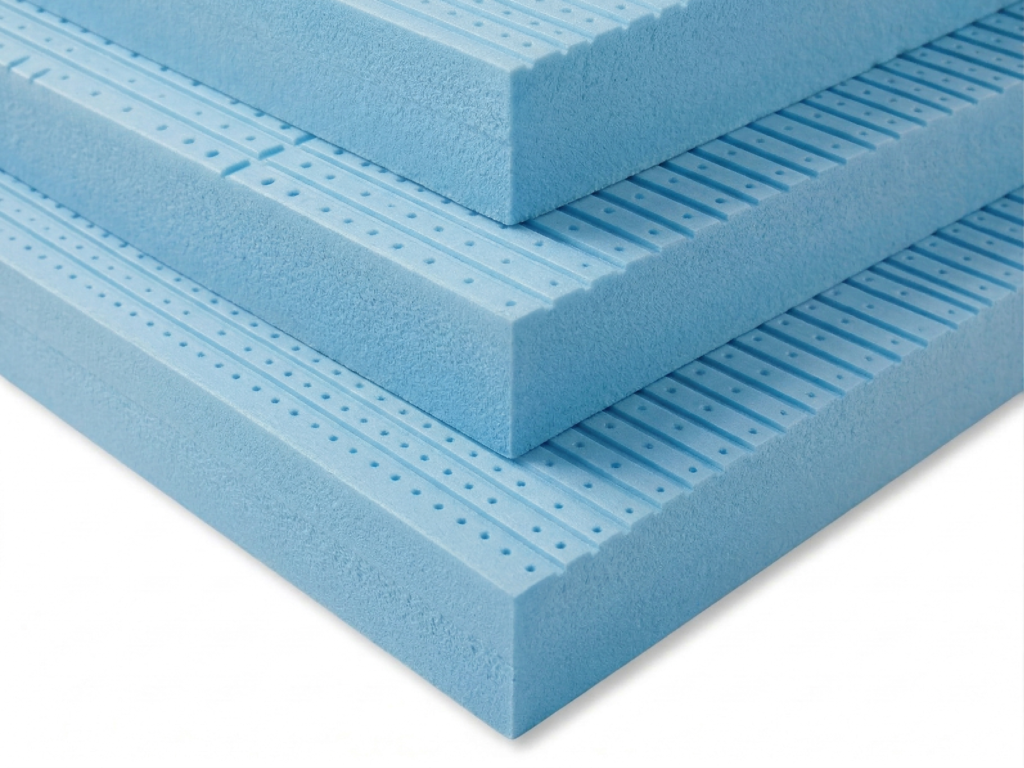

XPS-Extruded Polystyrene

High closed-cell rate with exceptional compressive strength and near-zero water absorption.Ideal for high-humidity regions or load-bearing applications.

Rock Wool

Class A1 non-combustible material. Combines fire safety with acoustic insulation,making it the premier choice for high-rise and public safety projects.

Surface Customization Center:

Carrier Layer: High-Density Fiber Cement or Aluminum Panel
Decorative Layer: Utilizing a 2/3-coat & 1-bake process with≥70%PVDF resin. The film features high hardness, scratch resistance, and anti-static properties to prevent dust accumulation.

Gloss Level Customization

We offer precise control over gloss levels to match various architectural aesthetics.

Color Systems

Supported by an advanced tinting system, we can reproduce any color from global standard color charts.

Functional Coating

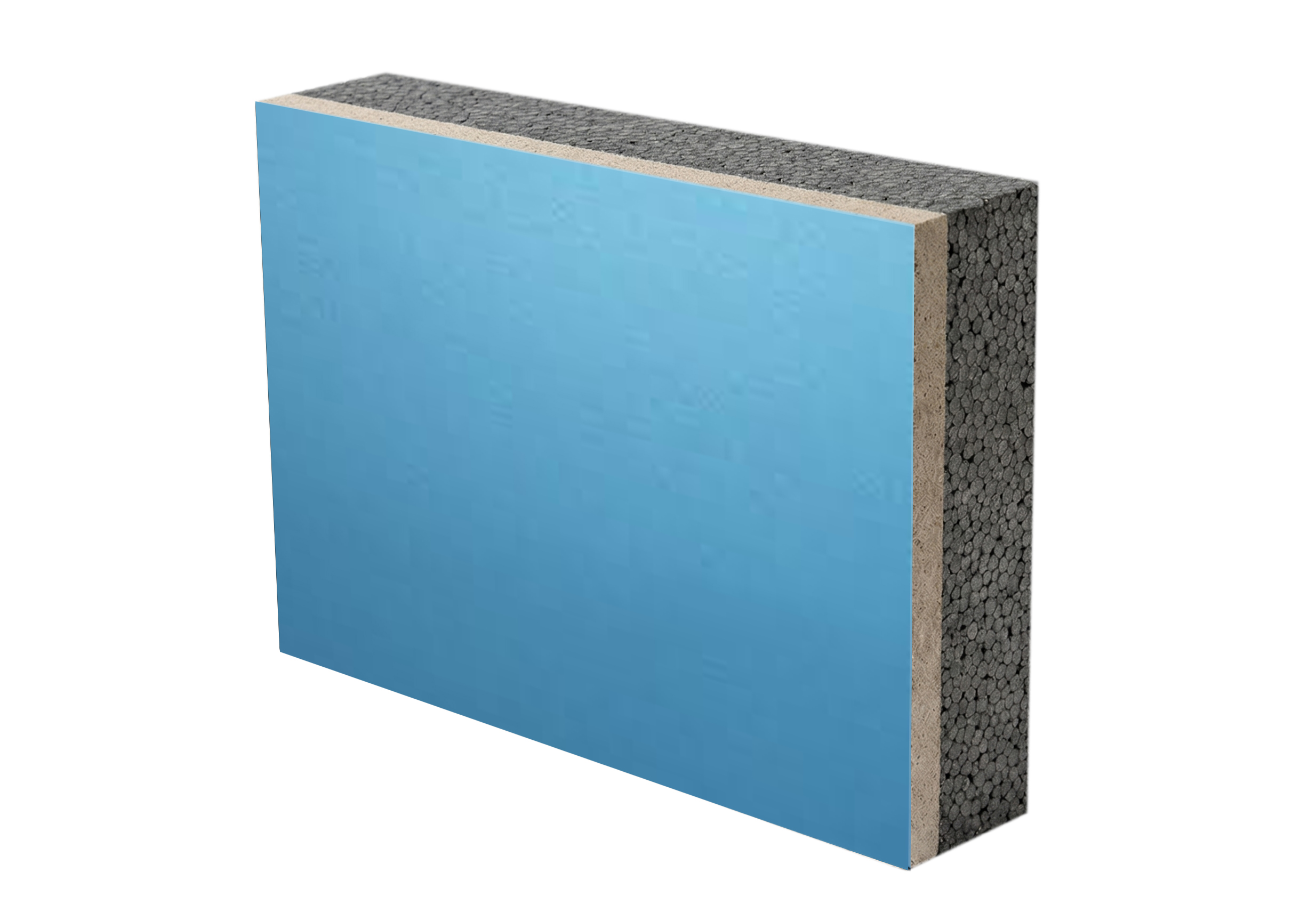

Engineered for Self-Cleaning, Anti-Static & Anti-Scratch Performance

Advantages:

Superior Weather Resistance: The surface features a PVDF coating with 70% fluorocarbon resin content, providing exceptional UV resistance, corrosion resistance, and self-cleaning properties, ensuring no fading for over 20 years.
Easy Installation: Factory-prefabricated for integrated molding, dramatically cutting down construction time and labor expenses.
Safety & Fire Protection: The system uses a “Bonding + Mechanical Anchoring” installation method, providing high wind-load resistance. Fire ratings reach Class A (Rockwool) or Class B1 (EPS/SEPS/XPS), meeting global fire safety codes.
Remarkable Cost-Effectiveness: Extremely lightweight (only 1/6th of natural stone), reducing the load requirements on building structures. The total installation cost is 30%-50% lower than traditional aluminum single-panel or stone curtain wall systems.

Technical

Standard Dimensions:

Product Model	Length	Width	Total Thickness	Facing Thickness
RS-PVDF Composite Panel	600mm，1220mm，Customizable	600mm，800mm，Customizable	35mm，55mm，125mm，Customizable	3mm，5mm，8mm，Customizable

Facing Layer Performance:

Test Item	Technical Data	Reference Standard
Weathering Resistance	No cracking or blistering	ASTM G154 / GB/T 1865
Scrub Resistance	≥5000Times	GB/T 9266
Stain Resistance	≤10%	GB/T 9755
Coating Adhesion	0 – 1Grade	ASTM D3359

Technical Specifications:

Properties	EPS	SEPS	XPS	Rock Wool
Thermal Conductivity	≤0.041 W/(m·K)	≤0.032 W/(m·K)	≤0.030 W/(m·K)	≤0.038 W/(m·K)
Typical Density	18kg/m³-25kg/m³	20kg/m³-30kg/m³	30kg/m³-45kg/m³	100kg/m³-160kg/m³
Fire Classification	B1 / B2	B1	B1 / B2	A1
Compressive Strength	≥100kPa	≥150kPa	≥250kPa	≥40kPa
Tensile Strength	≥0.10MPa	≥0.15MPa	≥0.20MPa	≥0.15MPa
Water Absorption	≤4%	≤3%	≤1%	≤1%(Hydrophobic)
